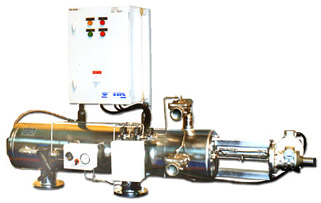

Automatic
Self-Cleaning Screen Filter
OdisMatic
Electric
This automatic screen filter, electrically operated is
the most sophisticated solution for water containing large quantities
of dirt in industry, irrigation and recycling.
Construction
Materials
Filtering
Element
A unique
element composed of layers of 316 stainless steel, heat-compacted
(sintered) screens to form a reinforced filtering element that
doesn't require PVC or steel support, resulting in a filtering
area larger than that of a standard screen.
The sintered filtering element integrate five 316L stainless steel
screens:
-
Inner
protection screen for protection of fine filtering screen
-
Fine
filtering screen
-
Two
dispersal screens
-
External
reinforcing screen for mechanical strength
This
unique element filters hard water with extra high-efficiency and
low head losses.
Screens are available in various mesh sizes and filtering grades
in the range of 1000 to 5 microns.
Filter
Housing
The filter housing is made from plated carbon steel, stainless
steel or vulcanized steel.
Models
|
Model
|
Inlet
/ Outlet Diameters
|
Max
Recommended Flow Rate (up to)
|
|
inch
|
mm
|
m³/h
|
U.S.
gpm
|
|
86002
|
2
|
50
|
25
|
110
|
|
86003
|
3
|
75
|
50
|
220
|
|
86004
|
4
|
100
|
110
|
480
|
|
86006
|
6
|
150
|
200
|
880
|
|
86008
|
8
|
200
|
360
|
1580
|
|
86010
|
10
|
250
|
470
|
2070
|
|
86012
|
12
|
300
|
560
|
2460
|
|
86014
|
14
|
350
|
650
|
2860
|
|
|
|
|
|
|
Model
|
Inlet
/ Outlet Diameters
|
Max
Recommended Flow Rate (up to)
|
|
inch
|
mm
|
m³/h
|
U.S.
gpm
|
|
86302
|
2”
|
50
|
25
|
110
|
|
86303
|
3”
|
80
|
40
|
170
|
|
86304
|
4”
|
100
|
80
|
350
|
|
86306
|
6”
|
150
|
150
|
660
|
|
86308
|
8”
|
200
|
300
|
1300
|
|
86310
|
10”
|
250
|
400
|
1750
|
|
86312
|
12”
|
300
|
470
|
2050
|
|
86314
|
14”
|
350
|
550
|
2400
|
|
|
|
|
|
|
